Trifin

TOLERANCES TRIFIN

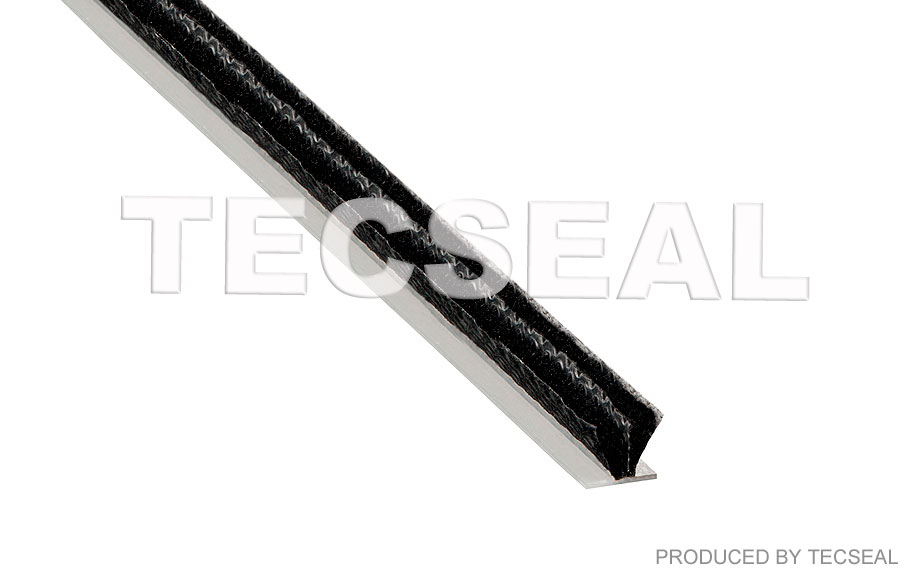

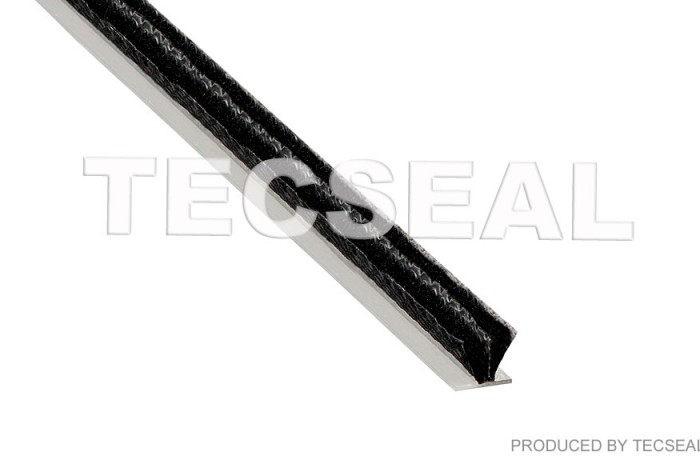

TF: TRI FIN
Three silent fins against air and water infiltration.

a BASE WIDTH

±0,10 mm

b PILE HEIGHT

+ 0,25 mm – 0,15 mm
If the height of the pile is superior to 6,50 mm
+ 4% -2,5%

c BASE THICKNESS

0,75 mm ± 0,10 mm

d PILE WIDTH

2,5 ±0,15 mm

f FIN HEIGHT

±0,50 mm

Ver packaging
