Tec Loc

TECSEAL LOC

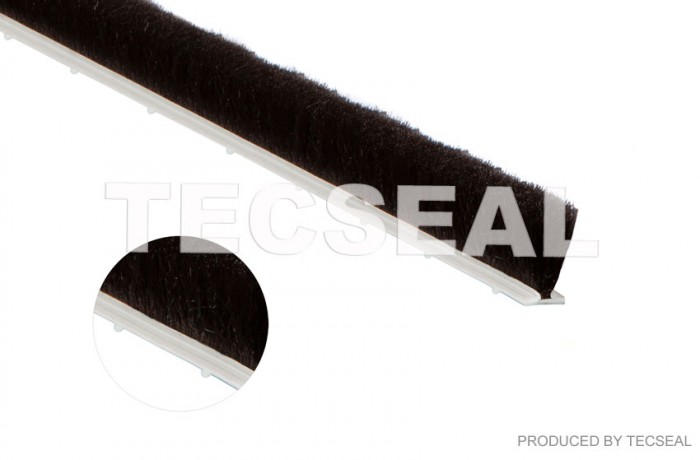

This pile has a continuous series of tabs on each side of the backing to hold the backing into the Profile.
Tec-Loc is designed to be inserted by hand or by using a pile insertion machine.

Tolerances

a BASE WIDTH

Only available for base of 4.8 mm and 6,9 mm
±0,10 mm

b PILE HEIGHT

+ 0,25 mm – 0,15 mm
If the height of the pile is superior to 6,50 mm
+ 4% -2,5%

c BASE THICKNESS

0,75 mm ± 0,10 mm

d PILE WIDTH

Check with our technical department

e TAB THICKNESS)

Distance between tabs 80 mm approximately.
Size Options:
Tecseal Loc- 10 0,76 mm
Tecseal Loc- 9 0,64 mm
Tecseal Loc-7 0,38 mm

Check packaging
