MRI

TOLERANCES MRI

MRI: ANGLE PILE

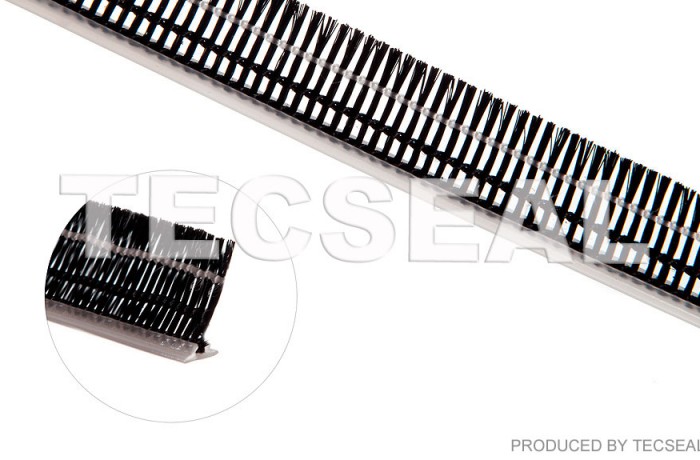

This pile is special for mosquito screen applications.

a BASE WIDTH

Base from 4,8 ±0,10 mm
Base from 6,7 ±0,10 mm

b PILE HEIGHT

Heights from 10 to 35 mm.
+ 4% -2,5%

c BASE THICKNESS

0,80 mm ± 0,15 mm

β ANGLE

45º±5º
30º±5º
