Bifin

TOLERANCES BIFIN

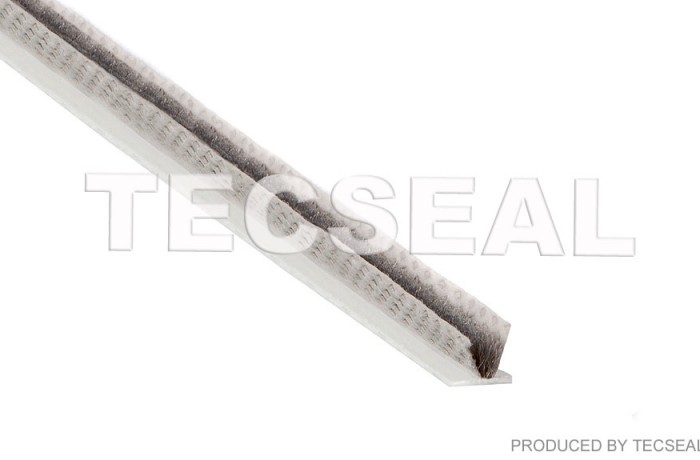

BF: BI FIN
Two silent fins against air and water infiltration.

a BASE WIDTH

±0,10 mm

bPILE HEIGHT

+ 0,25 mm – 0,15 mm
If the height of the pile is superior to 6,50 mm
+ 4% -2,5%

cBASE THICKNESS

0,75 mm ± 0,10 mm

dPILE WIDTH

2,3 ±0,15 mm

fFIN HEIGHT

±0,50 mm

Check Packaging

bifin1c
